| No. Specifications |
Standard Value |
| Identifications |
Mirco (AWG : 22AWG, 24AWG)
Mini (AWG : 18AWG, 15AWG) |

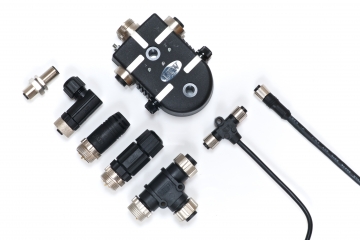

| Description |
Mirco:
Bulkead (With Wire / Double-ended / Right Angle)
Cable (Drop Line / Double-ended Cordset / Field Installable / T-Cable)
Nework Terminator (Single-ended / In-Line)
Adaptor (T-Adaptor / Elbow)
Multi-port
Waterproof Cap
Mini:
Bulkead (With Wire / Double-ended / Right Angle)
Cable (Drop Line / Double-ended Cordset / Field Installable / T-Cable)
Nework Terminator (Single-ended / In-Line)
Adaptor (T-Adaptor / Elbow)
Multi-port
Waterproof Cap
Mini To Mirco:
Adaptor (T-Adaptor / I-Adaptor ) |
| Current Rating |
4A, 8A |
| Material |
Contacts: Copper Alloy, Gold Plated
Connector Holder: PA |
| Temperature Range |
Receptacle : -40℃~ + 85℃
Overmolded With Cable : -20℃~ + 80℃
Field Installable : Nylon+GF : -40℃~ + 105℃
PU : -20℃~ + 85℃ |
| Waterproof Rating |
IP67,IP68 |
|
