No. Specifications |
Standard Value |
Identifications |

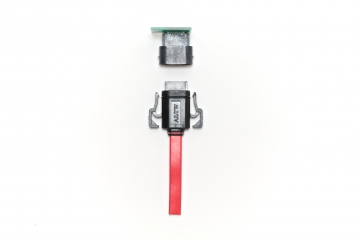

SATA II Connector |
Description |
PCB to Wire |
Current Rating |
1.5A |
Material |
Contacts: Copper Alloy, Gold Plated
Connector Body: LCP / PBT |
Temperature Range |
Overmolded With Cable: -20℃~ + 80℃
Connector Body: -20℃~ + 80℃ |
Waterproof Rating |
IP66,IP67,IP68(Per IEC 60529) |
Contact Resistance |
≦30mΩ |
Insulation Resistance |
≦100mΩ at DC 500V |
Durability |
500 Cycles |
|
