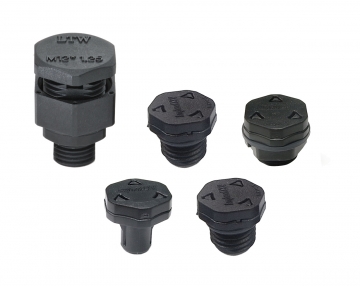

Waterproof VENT

ベントコネクタ

製品の通し番号
Waterproof VENT






No. Specifications Standard Value
Environment Temperature -40℃~ + 105℃
Waterproof Rating IP69K
Air Permeability <260ml/min @70mbar
Water Entry Pressure 60kPa
Material(Housing) mPPE
Material(Membrane) PTFE
Material(Sealing) O-Ring: Silicone
Material(Housing Color) Black
Test Standards * Thermal Shock : EIA 364-32 or IEC 60512-11d
* Waterproof : IEC 60529
* Fungus : GB/T 2423.16
