Waterproof Solar






No. Specifications Standard Value

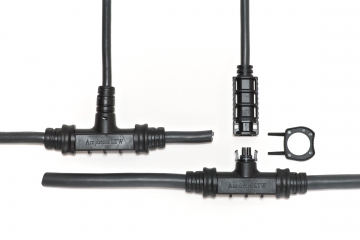

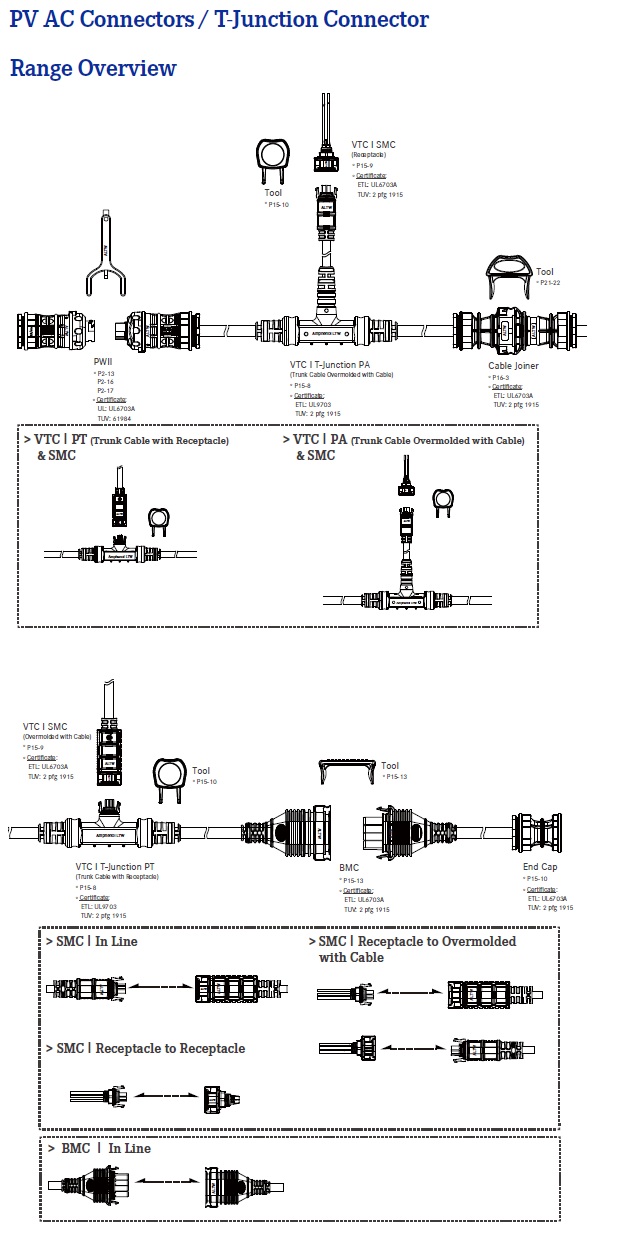

Identifications VTC I T Jucntion : PT & PA  (For Trunk Cable)

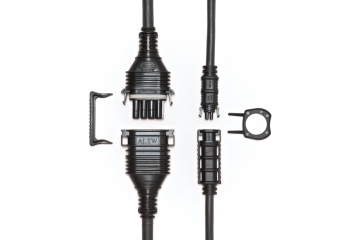

VTC I SMC (For Drop Or Receptacle)

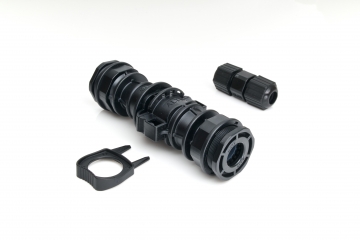

BMC
Description Cabling System For Mirco-Inverter
Current Rating / Date VTC I T Junction :
Trunk Range : UL 15A~30A / TUV 17A~25A / 3~4Pin
VTC I SMC : 5A / 3~4Pin
BMC : UL 17A / TUV 19A / 3~4Pin
Material Contacts: Copper Alloy
Connector Body: m-PPE
Temperature Range Ambient : -40℃~ + 85℃
Upper Limited Temperature : + 105℃
Waterproof Rating IP67
Contact Resistance ≦10mΩ
Insulation Resistance ≦100mΩ at DC ≦500V
Durability 500 Cycles
Vlotage Rating AC 300V
