USB System > MINI USB

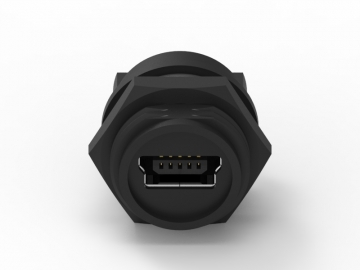

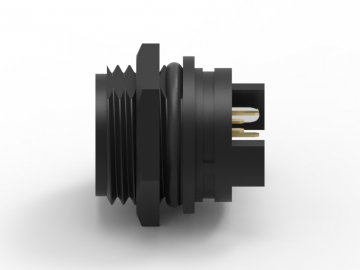

	Waterproof MINI USB Panel Molding Type
	產品編號 P507PAN-MUSMF05S11 Identifications USB A Type (2.0, 3.0) USB B Type Mini USB Type Mirco USB Type



No. Specifications Standard Value Identifications USB A Type (2.0, 3.0) USB B Type Mini USB Type Mirco USB Type   Description Penal Mount, Molded With Cable and Field Installable Current Rating USB : 1.5A ​Mini USB : 1A Material Contacts: Copper Alloy, Gold Plated Connector Body: PBT UL94V-0 Temperature Range Cable: -20℃~ + 80℃ Connector Body: -40℃~ + 105℃ Waterproof Rating IP66,IP67,IP68(Per IEC 60529) Contact Resistance ≦ 30mΩ MAX Insulation Resistance ≦ 100mΩ MIN Speed 480Mbps Breakdown Vlotage ≧ AC 500 V / 1Minute
