| o. Specifications |
Standard Value |
| Identifications |
M5
M8 A,B Code
M12 A,B,D,X Code For Signal
M12 S,T,L,K,M Code For Power
7/8" |
| Description |

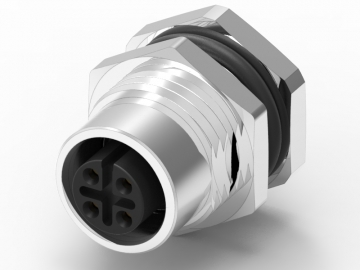

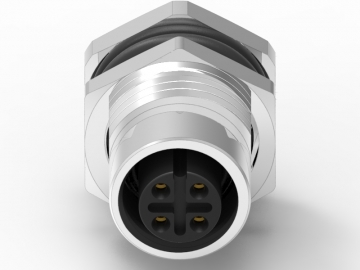

Penal Mount, Molded With Cable and Field Installable |
| Current Ration / Pin Arrangements |
M5-1A : 3,4Pin
M8-4A : 3,4Pin
M8-3A : 5Pin (B Code)
M8-2A : 6Pin
M8-1A : 8Pin
M12(A) 4A : 3~5Pin, 2A : 8Pin, 1.5A : 12~17Pin
M12(B) 4A : 5Pin
M12(D) 4A : 4Pin
M12(S) 12A : 3~4Pin (AC 630V)
M12(T) 12A : 4Pin (DC 63V)
M12(K) 12A : 5Pin (AC 630V)
M12(L) 12A : 5Pin (DC 63V)
M12(M) 8A : 8Pin (AC 630V)
M16 3~14Pin
7/8" 3~5Pin
M23 6~19Pin |
| Material |
Contacts: Copper Alloy, Gold Plated
Connector Body: Nylon+GF or PU, UL Recognized
Shield: Zinc Alloy or Copper Alloy,
Nickel Plated |
| Temperature Range |
Cable: -25℃~ + 90℃ (PU)
-20℃~ + 80℃ (PVC)
Connector Body: -40℃~ + 105℃ |
| Waterproof Rating |
IP66,IP67,IP68 |
| Contact Resistance |
≦100mΩ |
| Insulation Resistance |
≦100mΩ at DC ≦ 150V |
| Breakdown Vlotage |
≧AC 500V / 1Minute |
|
