| No. Specifications |
Standard Value |
| Identifications |
M5
M8 A,B Code
M12 A,B,D Code For Signal
M12 S,T,L,K,M Code For Power
M16 a,b Code
7/8" For Power |
| Description |

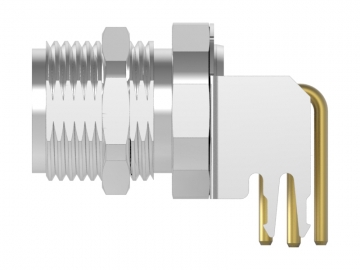

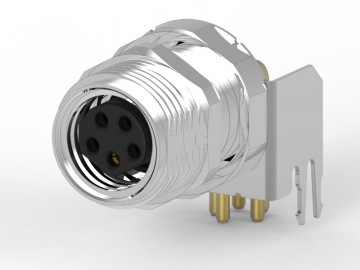

Penal Mount, Molded With Cable and Field Installable |
| Current Rating / Pin Arrangements |
M5-1A:3,4Pin
M8-4A:3,4Pin
M8-3A:5Pin
M8-2A:6Pin
M8-1.5A:8Pin
M12(A)4A:3~5Pin, 2A:8Pin, 1.5A:12~17Pin
M12(B)4A:5Pin
M12(D)4A:4Pin
M12(S),AC 630V-12A:4Pin
M12(T),DC 63V-12A:4Pin
M12(L),DC 63V-16A:5Pin
M12(K),AC 630V-16A:5Pin
M12(M)-AC 630V-8A:8Pin
M16 -3~14Pin
7/8"-8A:3~5Pin |
| Material |
Contacts: Copper Alloy, Gold Plated
Connector Body: Nylon+GF or PU, UL Recognized
Shield: Zinc Alloy or Copper Alloy,
Nickel Plated |
| Temperature Range |
Cable: -25℃~ + 90℃ (PU)
-20℃~ + 80℃ (PVC)
Connector Body: -40℃~ + 105℃ |
| Waterproof Rating |
IP66,IP67,IP68 |
| Contact Resistance |
≦10mΩ |
| Insulation Resistance |
≦100mΩ at DC ≦150V |
| Breakdown Vlotage |
≧AC 500V / 1Minute |
|
